K.T.S has 7 types of trailers. Biggest one 13.0 ton double frame trailer with 8.6 m crane on picture
10.6 ton double frame trailer with 6.7 m crane

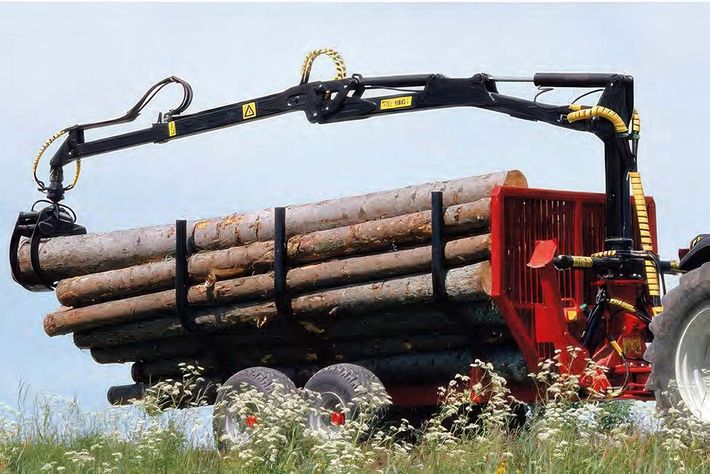

10.0 ton single frame trailer with 6.7 m crane

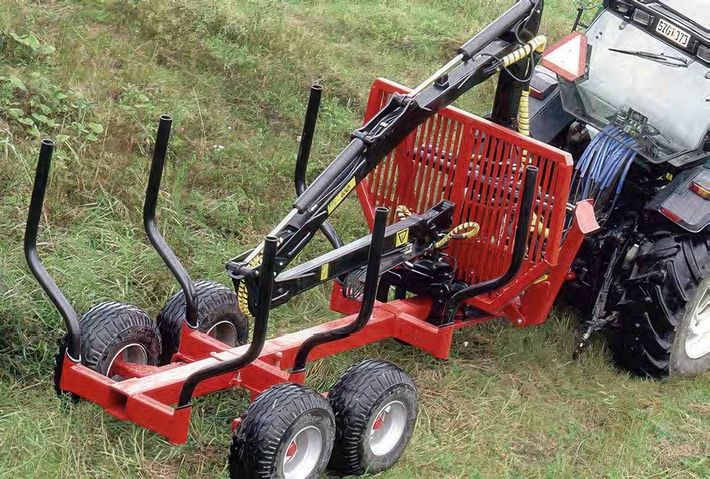

8.5 ton single frame trailer with 6.4 m crane
K.T.S has 7 types of trailers. Biggest one 13.0 ton double frame trailer with 8.6 m crane on picture
Biggest single frame trailer 11.0 ton with 7.5 m crane

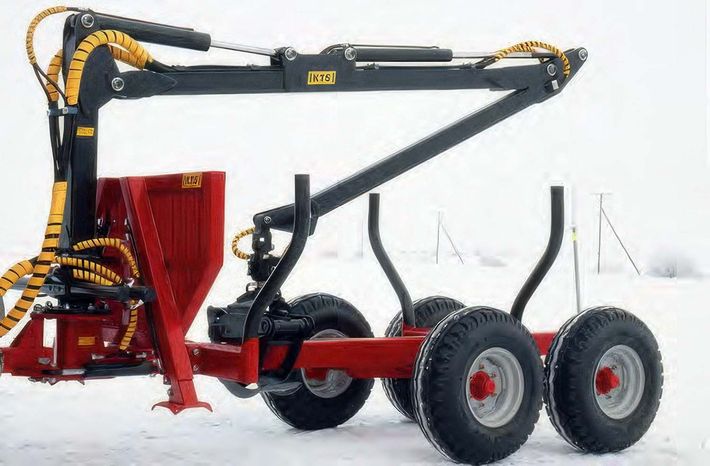

7.0 ton single frame trailer with 5.4 m crane

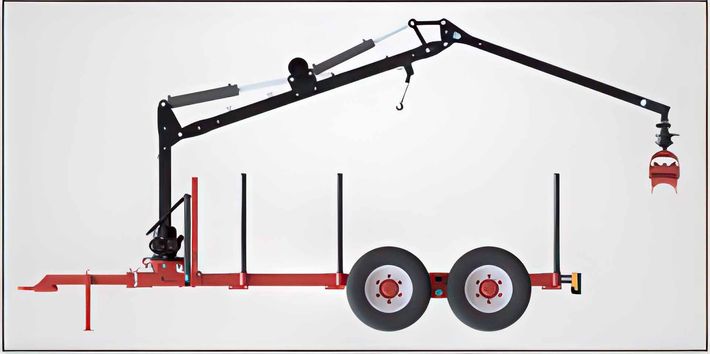

Single axle 4.0 ton single frame trailer with 4.2 m crane

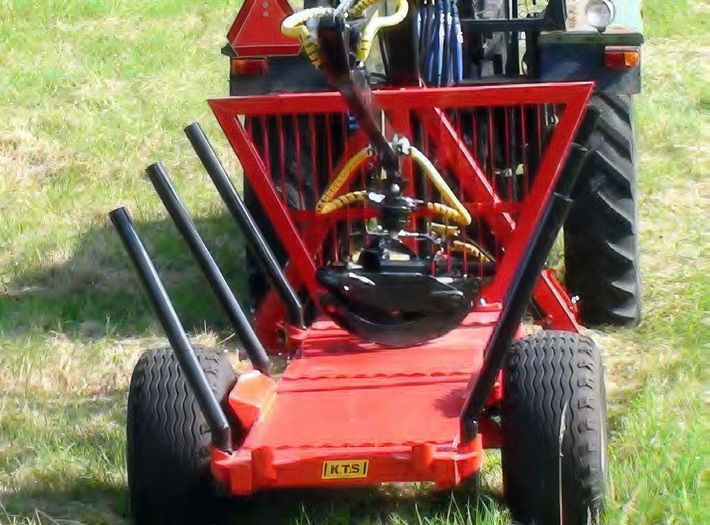

Single axle 5.5 ton trailer with 5.4 m crane

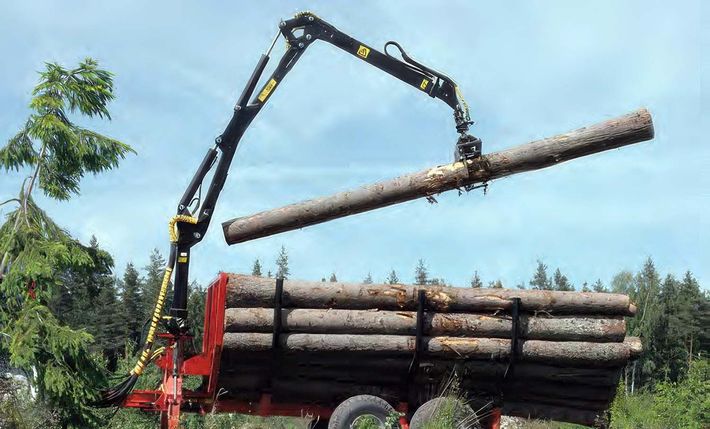

10.0 ton single frame trailer with 6.4 m crane
All hydraulic cylinders are mounted above the booms, with hoses running inside to pro-tect them from damage caused by logs. Protecting cylinders reduces breakages and saves money.

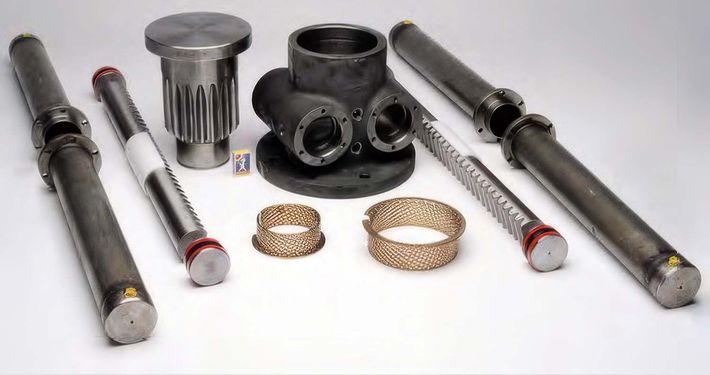

The slewing house passes through the majority of the crane's critical load forces. For this reason, K.T.S. uses oil bath running slewing houses with 290 mm increased height and 370° degree turning capability.

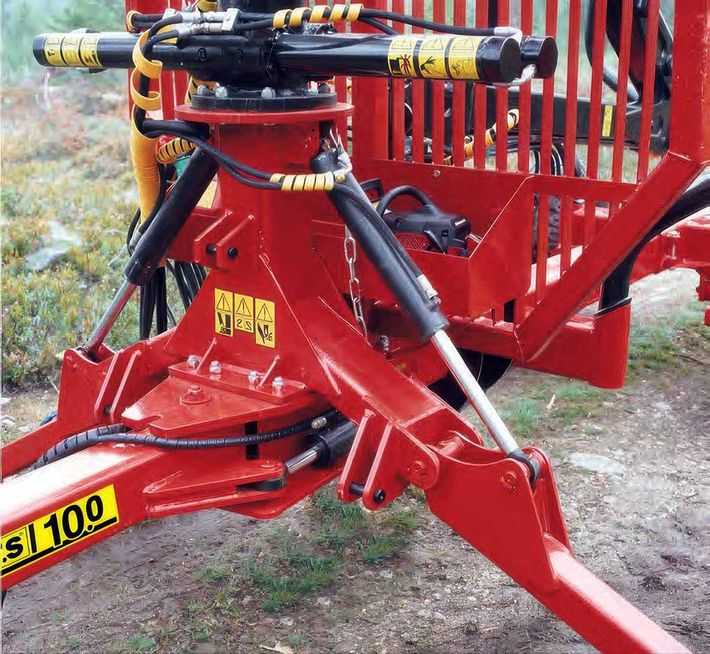

When transporting large weights, the connection between the 3-point adaptor and the trailer is especially important. Thus, eight M20 bolts hold our 3-point adaptor to the trailer.
The whole underside of the trailer steering cylin-ders is shielded from damage by the bottom plate. This provides excellent protection against damage. Lower running expenses and a de-creased chance of damage.

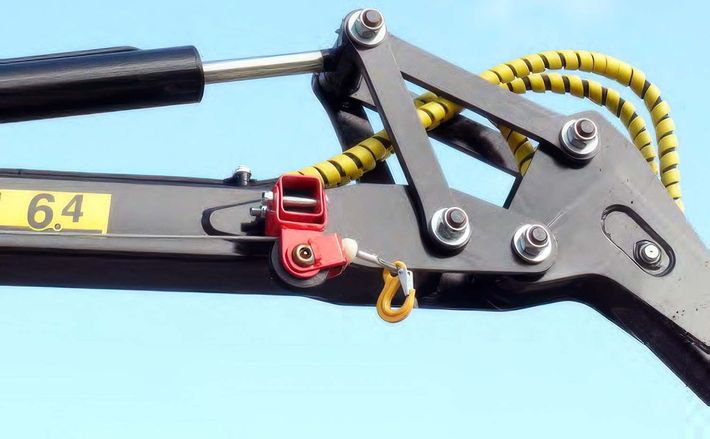

The K.T.S. Crane can function considerably more easily and tightly inboard because to the Comfort Link, an extra joint that greatly ex-pands the motions available.

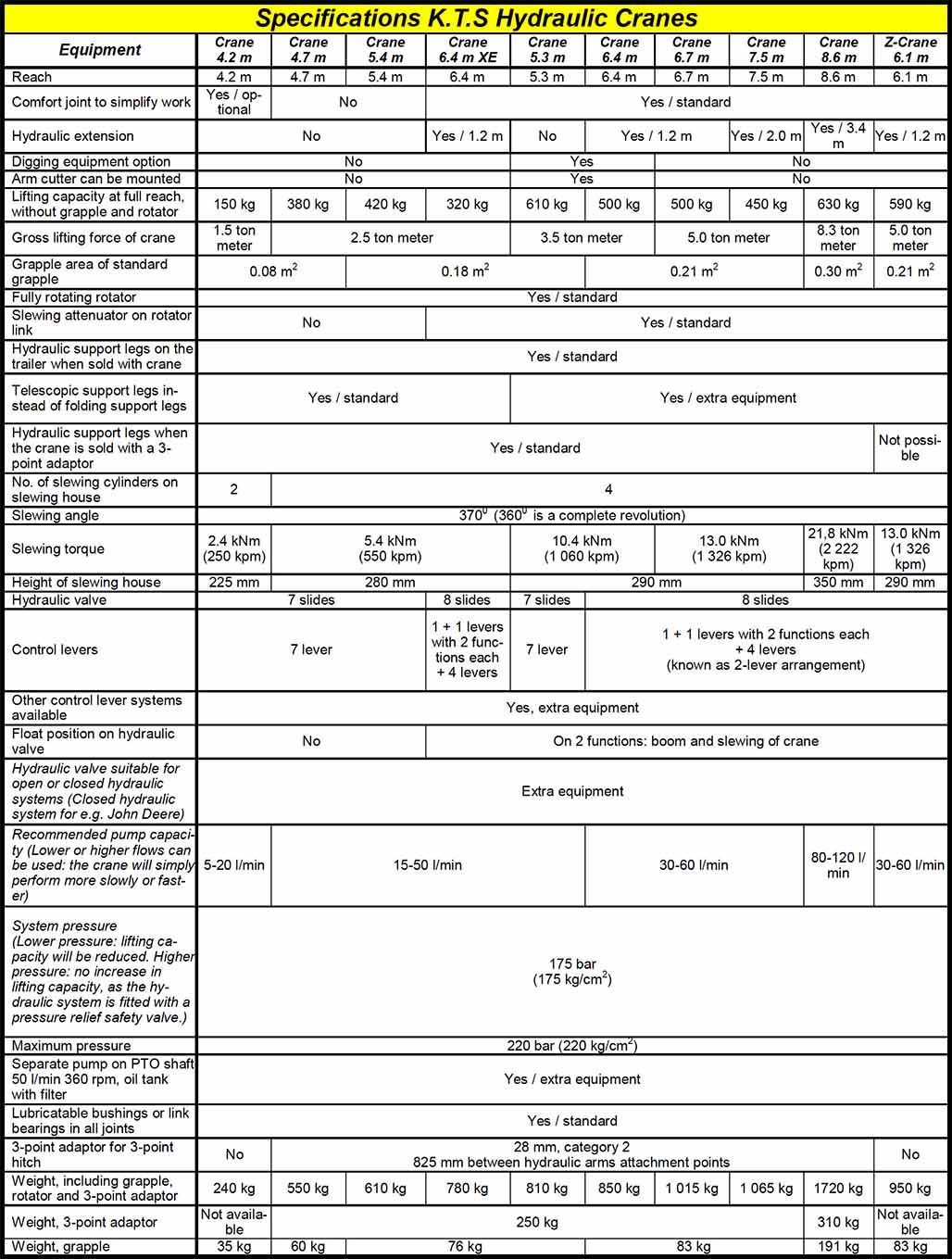

Crane model may differ, look at Chart for specifications.

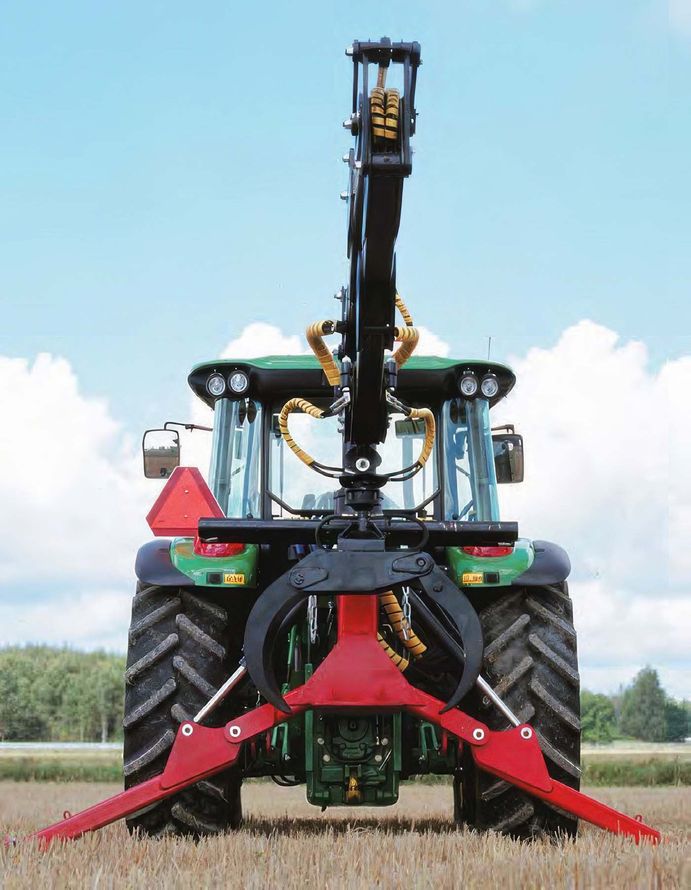

The 3-point adaptor's high ground clearance allows it to cross over the tow hook on certain trailers, such log trailers.
Every model of the crane comes with hydrau-lic support legs if it is ordered separately from the timber trailer.
The tractor's 3-point hitch is connected to a K.T.S. hydraulic crane, which has hydraulic outrigger support legs.
K.T.S 6.4 m. hydraulic crane

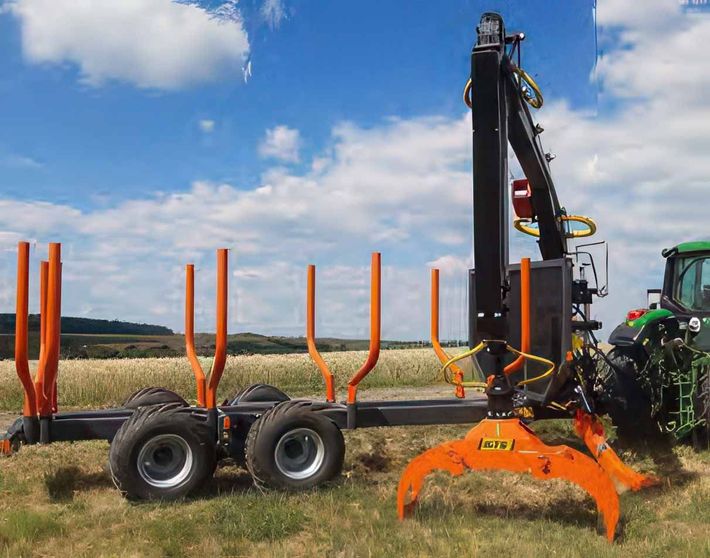

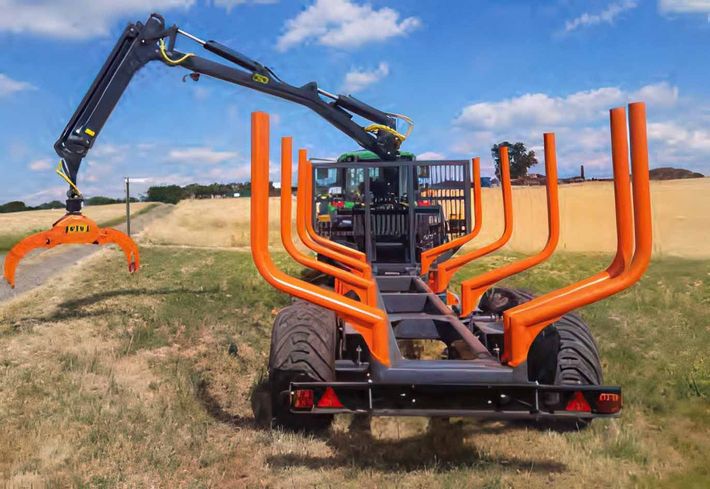

New design 8.6 m crane has up to 8.3 ton per meter lifting capacity.

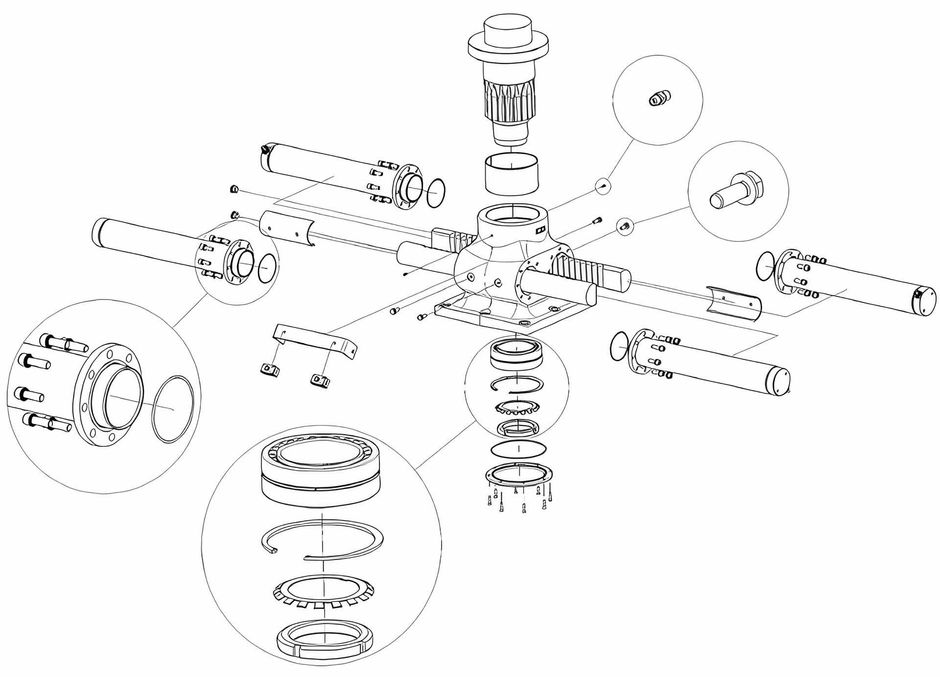

After extensive customer surveys, market research, FEM calculation, strength, and extensive tests, we created the slewing house in which all forces must pass extremely high loads. We determined that in order to withstand these high stresses and absorb all radial "up and down" forces, the pinion (rotator) must be a special type spherical roller bearing.
We are pleased to showcase our recently designed 8.6 m crane's slewing housing, which has SKF brand spherical roller bearings that are machined with extreme precision and accuracy.

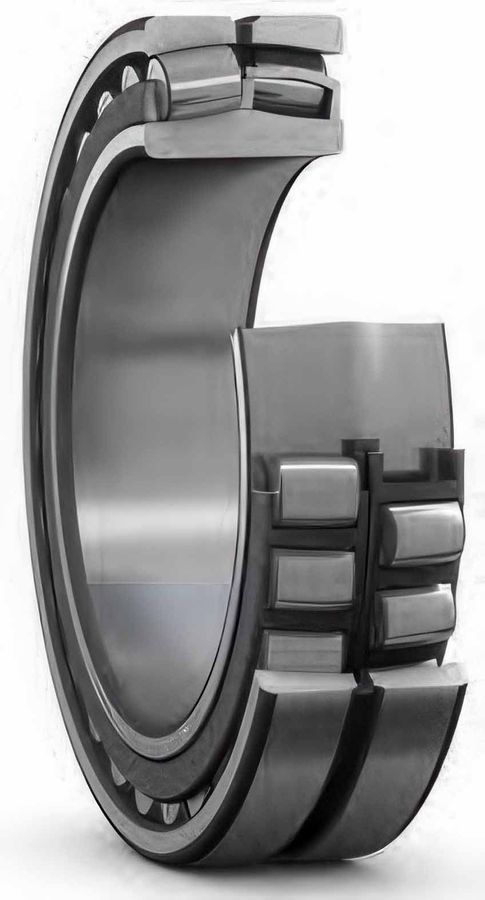

SKF spherical roller bearing
7.5 m crane with 11.0 ton trailer

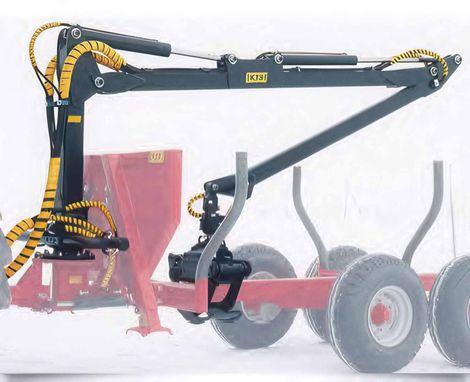

K.T.S 4.2 m crane
With comfort link

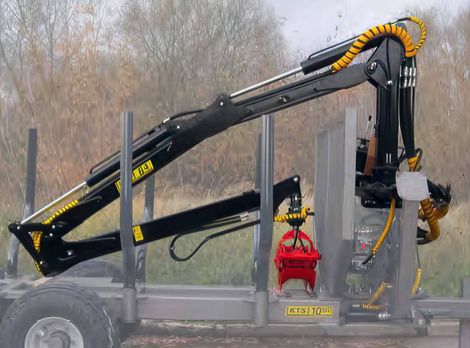

K.T.S 6.4 m crane
With comfort link and telescopic extension 1.2 m

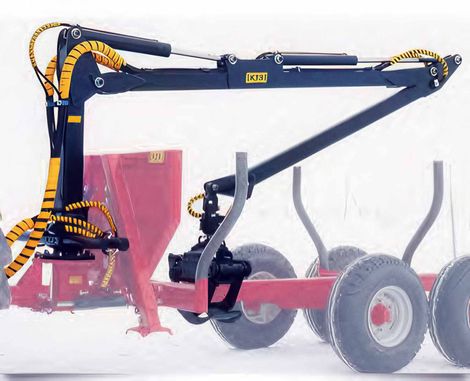

K.T.S 5.4 m crane

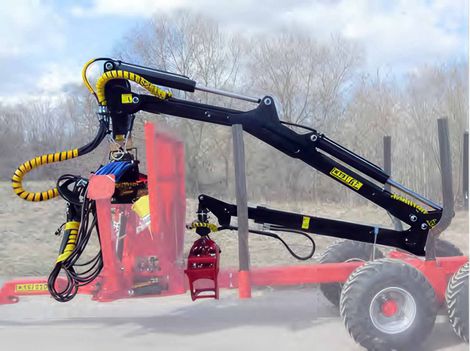

K.T.S 6.7 m crane
With comfort link and telescopic extension 1.2 m

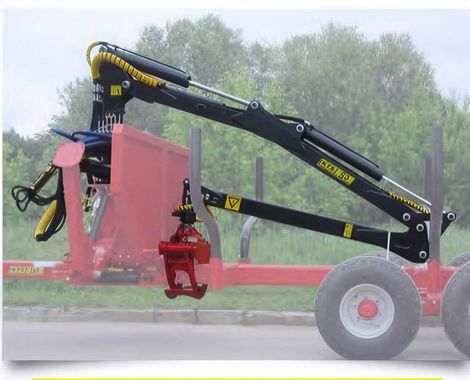

K.T.S 5.3 m crane
With comfort link

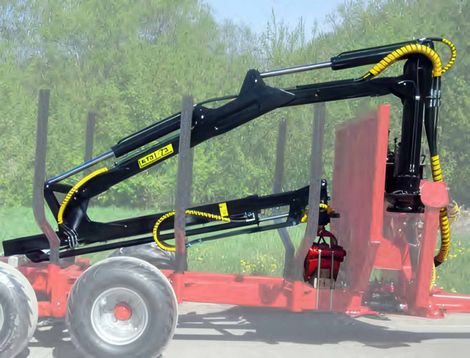

K.T.S 7.5 m crane
With comfort link and telescopic extension 2.0 m

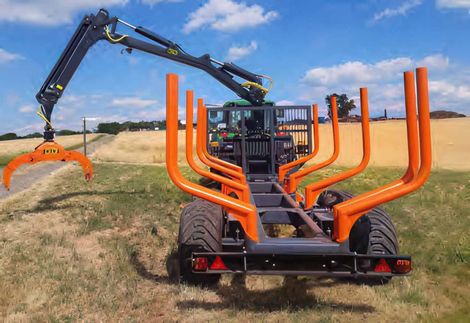

K.T.S 8.6 m crane
With comfort link and double
telescopic extension 1.2 m

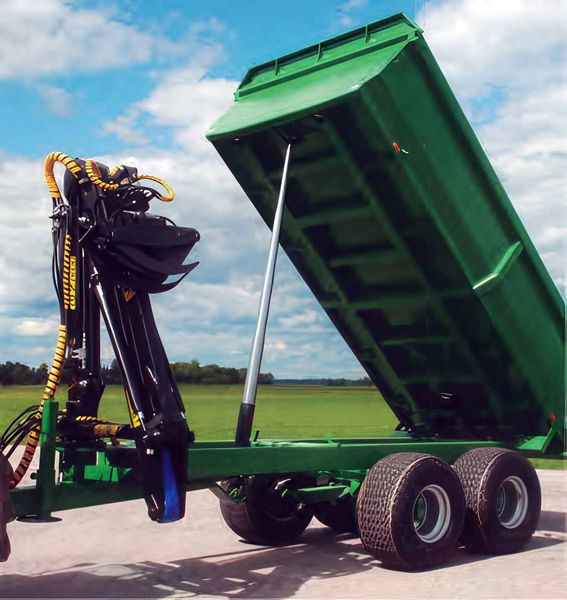

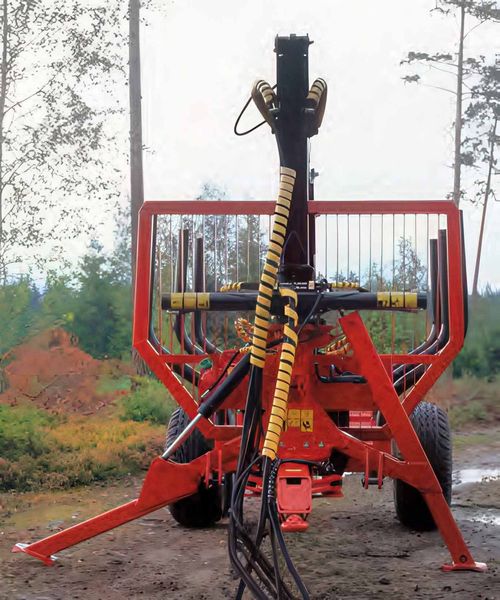

K.T.S can offer
flap-down
or
telescopic
support leg options
Please look at chart, not all models can have both options

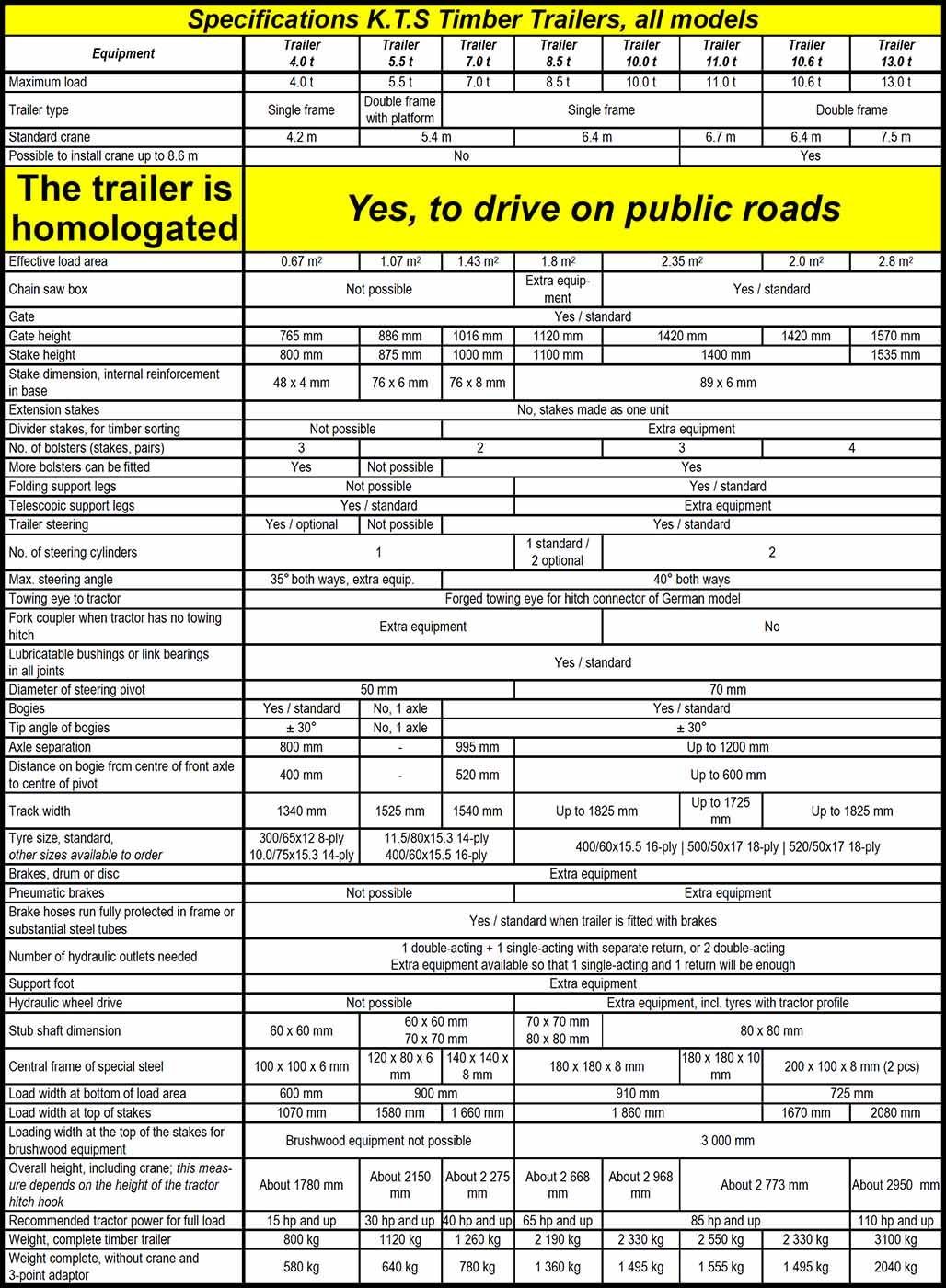

K.T.S Timber Trailers, all models
Click here to open a larger image

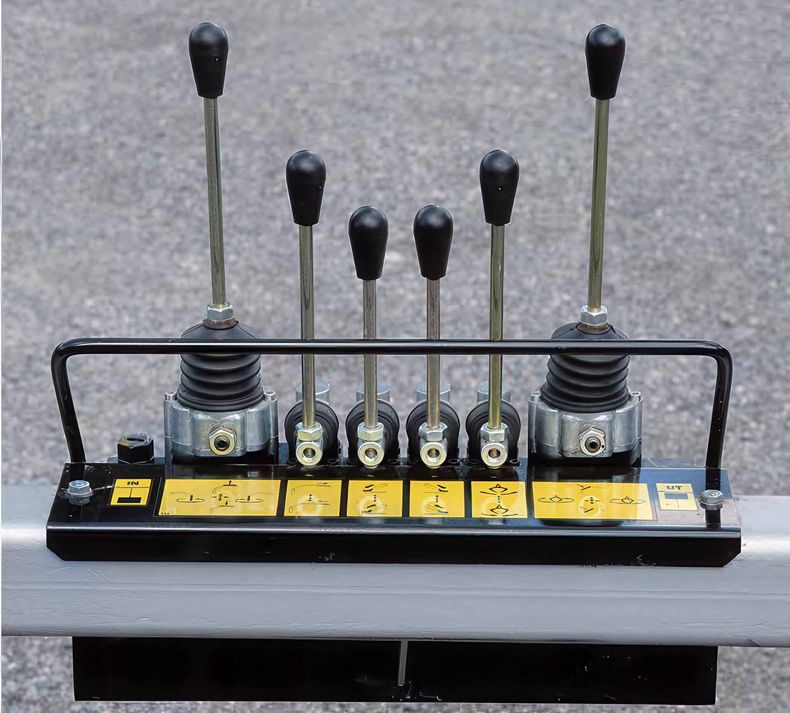

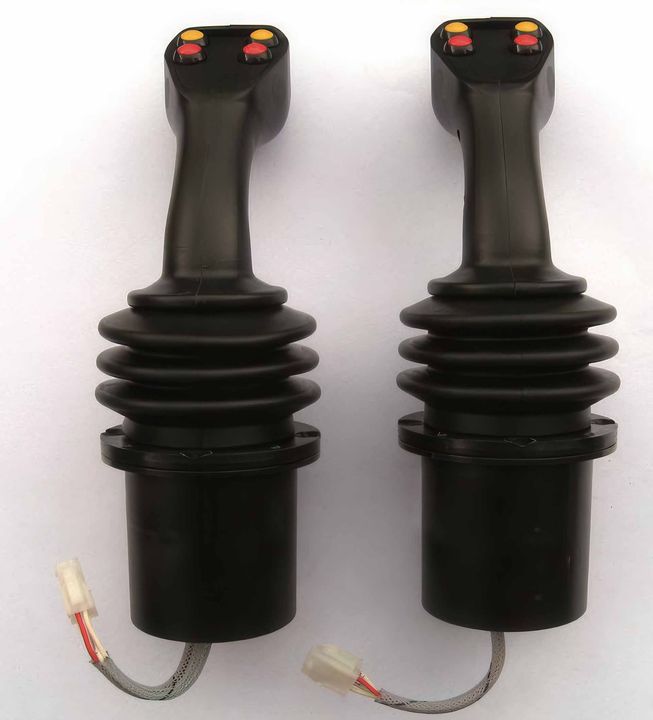

K.T.S. provides wide range of hydraulic valves, including radio-controlled, mechanical, and ON/OFF joystick switches.
The K.T.S. Crane is not only incredibly strong, but it also maneuvers very well!
While handling heavy logs, big cranes put a great deal of pressure on the slewing house, 3-point hitch, and support legs. As the owner, you may feel secure knowing that the machinery is designed to withstand challenging tasks.
10.6 ton double frame trailer with 6.4 m crane

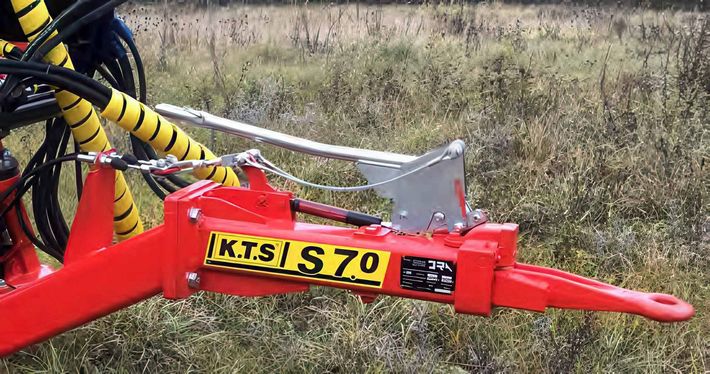

Overrun brake ”Auflaufbremse” for Germany and Austria

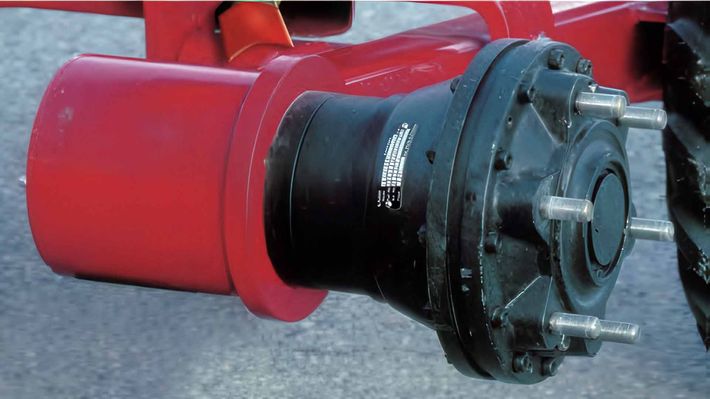

Hub-motor drive
Overrun brake ”Auflaufbremse” for Germany and Austria

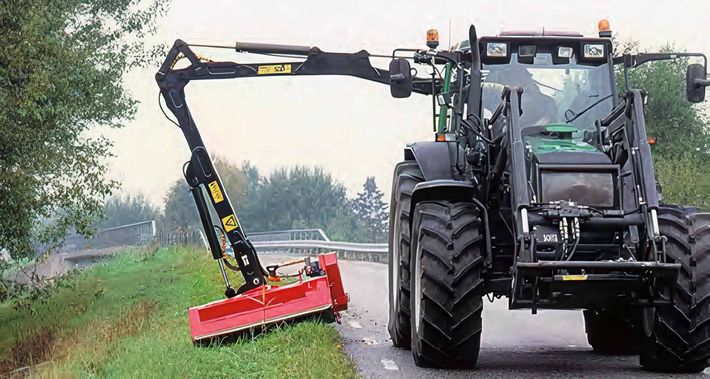

A robust hydraulic engine powers the rotor, utilizing 1.33 m flail mulcher

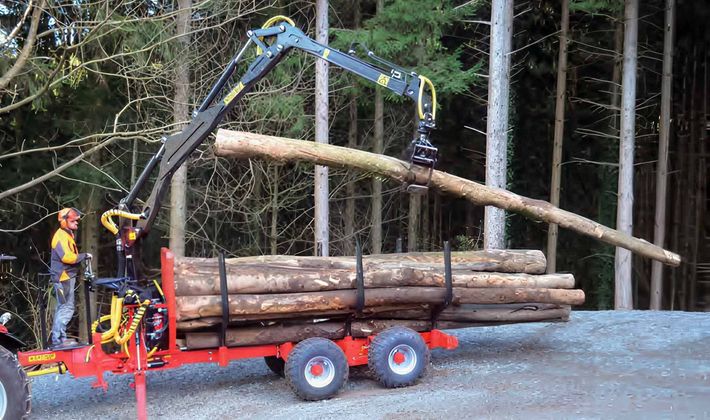

Operator platform for handling timber trailer

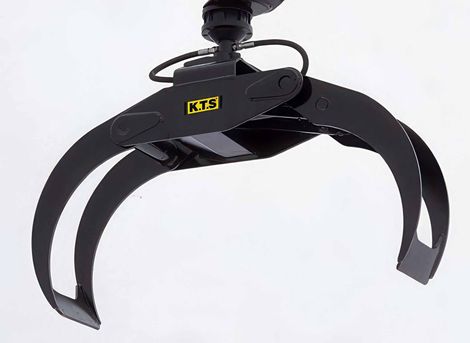

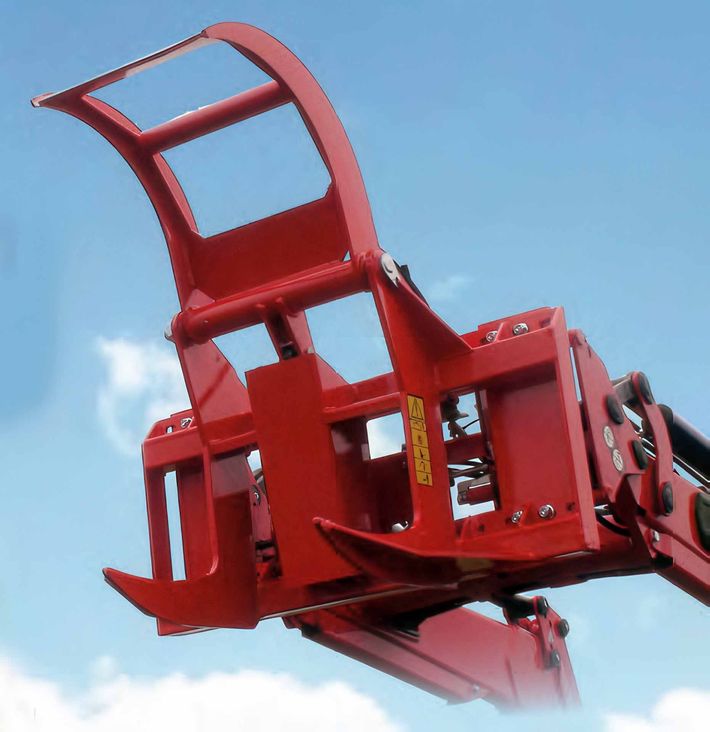

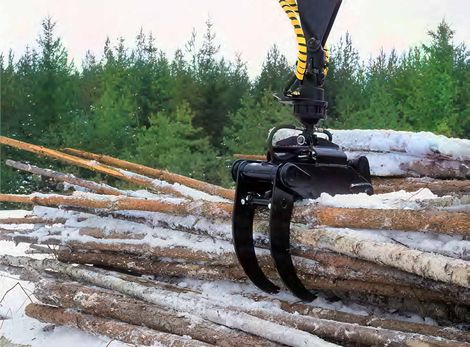

Regular grapples
Grapel aria 0.08 m² Material STRENX® 700
Grapel aria 0.18 m² Material STRENX® 700
Grapel aria 0.21 m² Material STRENX® 700
Pro grappels material HARDOX® 450
Grapel aria | 0.12 m² |
Grapel aria (0.21) | 0.22 m² |
Grapel aria | 0.25 m² |
Grapel aria, 2-cylinders HD | 0.26 m² |
Grapel aria | 0.30 m² |
Grapel aria | 0.35 m² |
Grapel aria | 0.45 m² |
Grapel aria Expander boults | 0.56 m² |

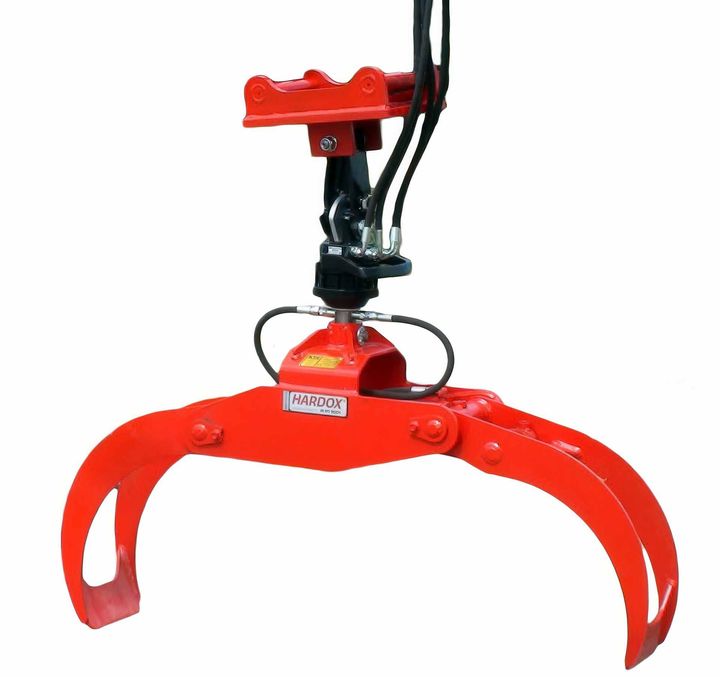

Grappel for excavator with rotator rotatorlink and brackets
Brush wood Pro grapel material HARDOX® 450 Grapel aria 0.21 m²

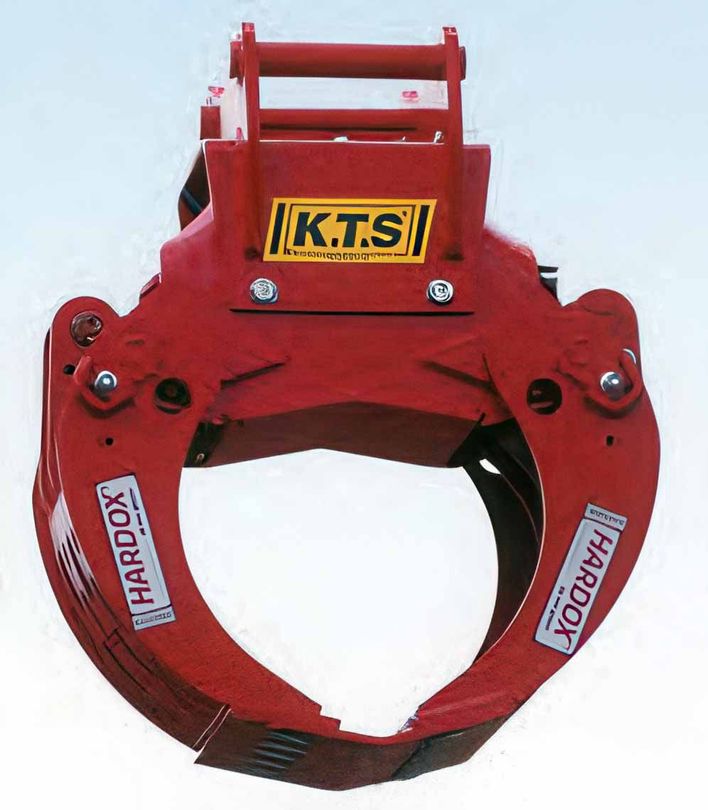

Demolation grappels material HARDOX® 450
Demolation and sorting grappels | 0.20 m² |
Demolation and sorting grappels | 0.28 m² |
Demolation and sorting grappels | 0.36 m² |
Demolation and sorting grappels | 0.52 m² |

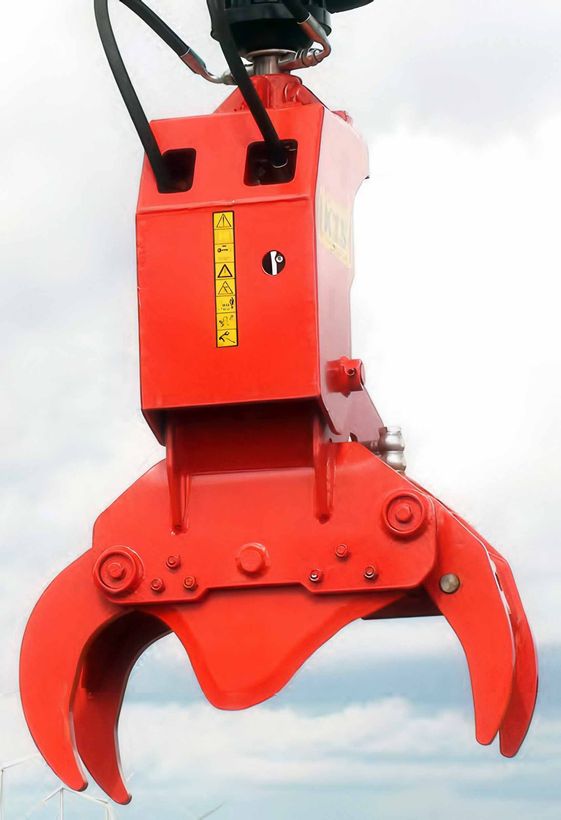

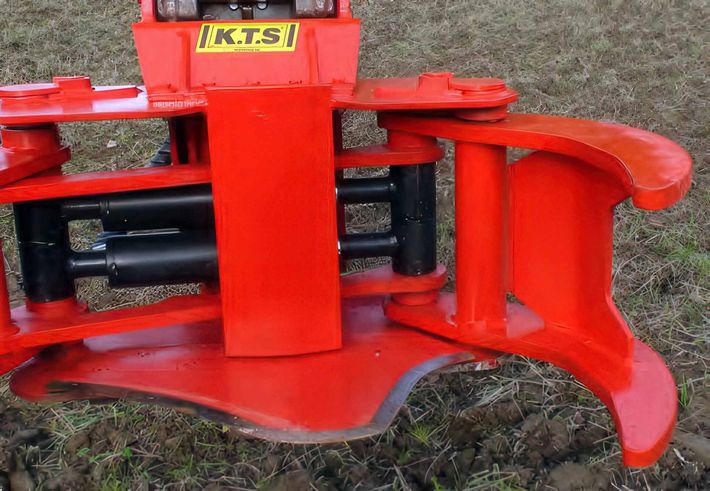

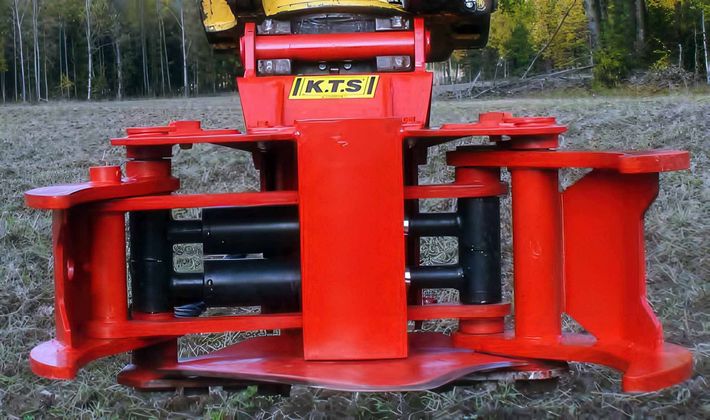

Modell 14 and 20 cm for logging trailers and small escavators

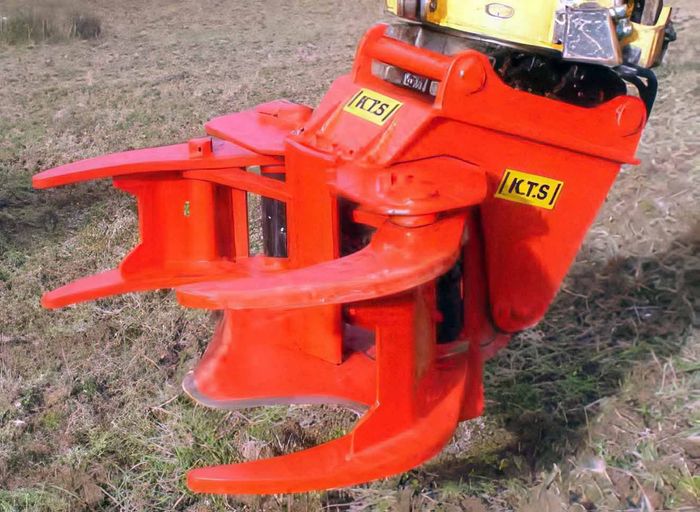

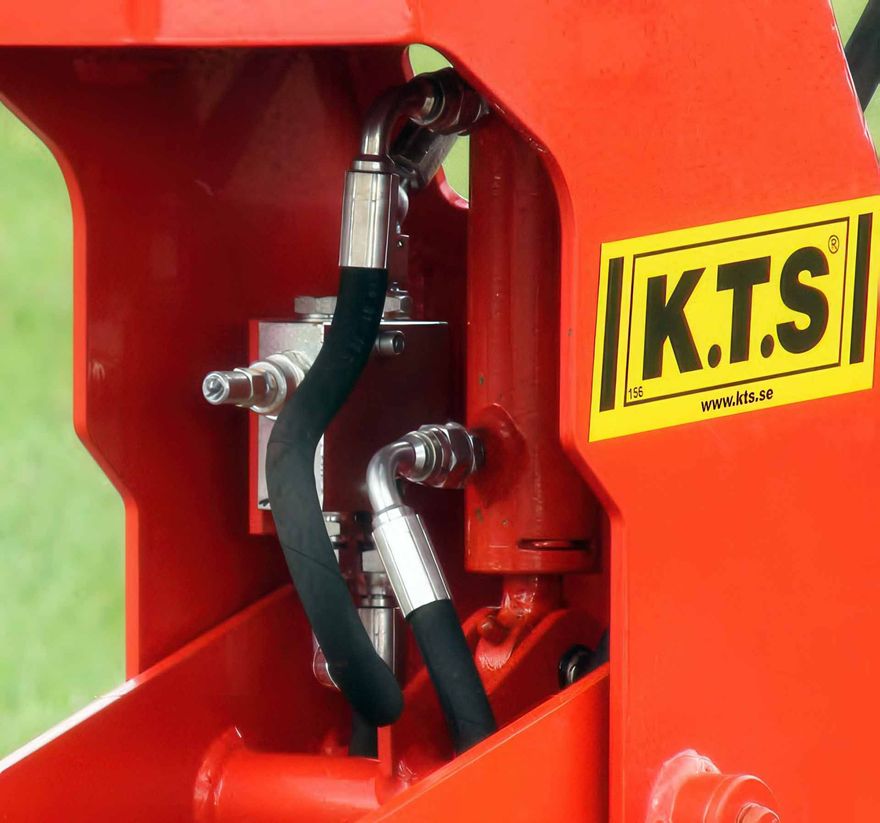

K.T.S have a valv on Tree Shears so you onley need onley double-acting hydraulic outlet.
K.T.S Maskiner AB is today a company, which sells own-produced trailers, cranes and attachments for front loaders and wheel loaders in 22 European countries.
We have an own factory in Lithuania, K.T.S Production, which produces some of our machines and equipment. Timber trailers and cranes is complete assembled when we deliver to you.
We also have suppliers in Sweden who produce some of our products.
5 % of our turnover we put into product development, which makes it possible to introduce new products on the market every year.
All construction will be made in Inventor 3D to make it as easy as possible to fulfil different customer requirements.
All K.T.S Maskiner machines are CE certified.
We have a complete instruction book and spare parts catalogue to all our products in English and German.

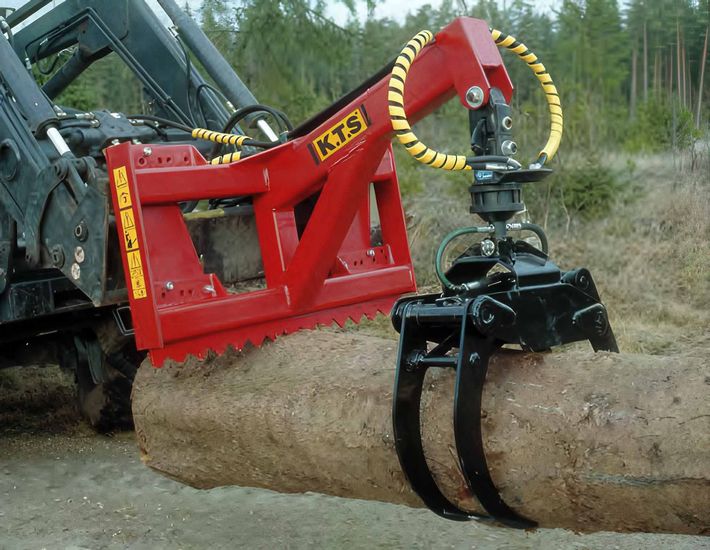

I enclose on trailers and cranes, tree shares, attachments for front loaders, wheel loaders and telehandlers.
I really hope that you are interested in increasing your range and also making profit on K.T.S Products.
If you need further information, please let me know. I speak English, but it is also possible to write your answer in another language.
Any questions? Please call us or send an mail! We will be pleased to assist you, both before and after buying K.T.S equipment.
K.T.S has a timber trailer for every need.
The choice is yours!
